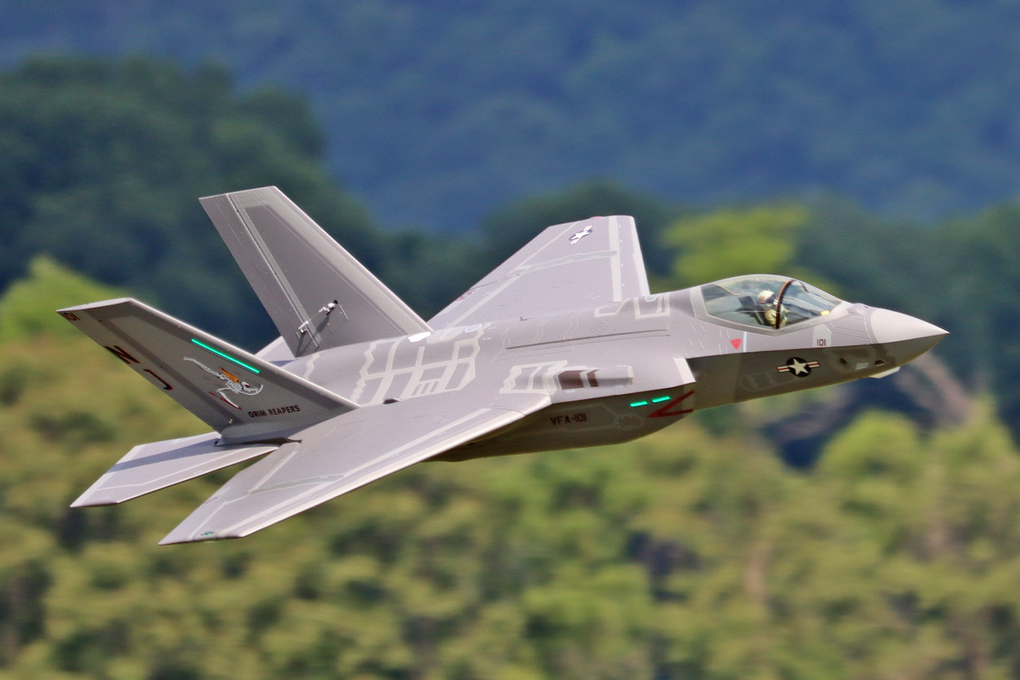

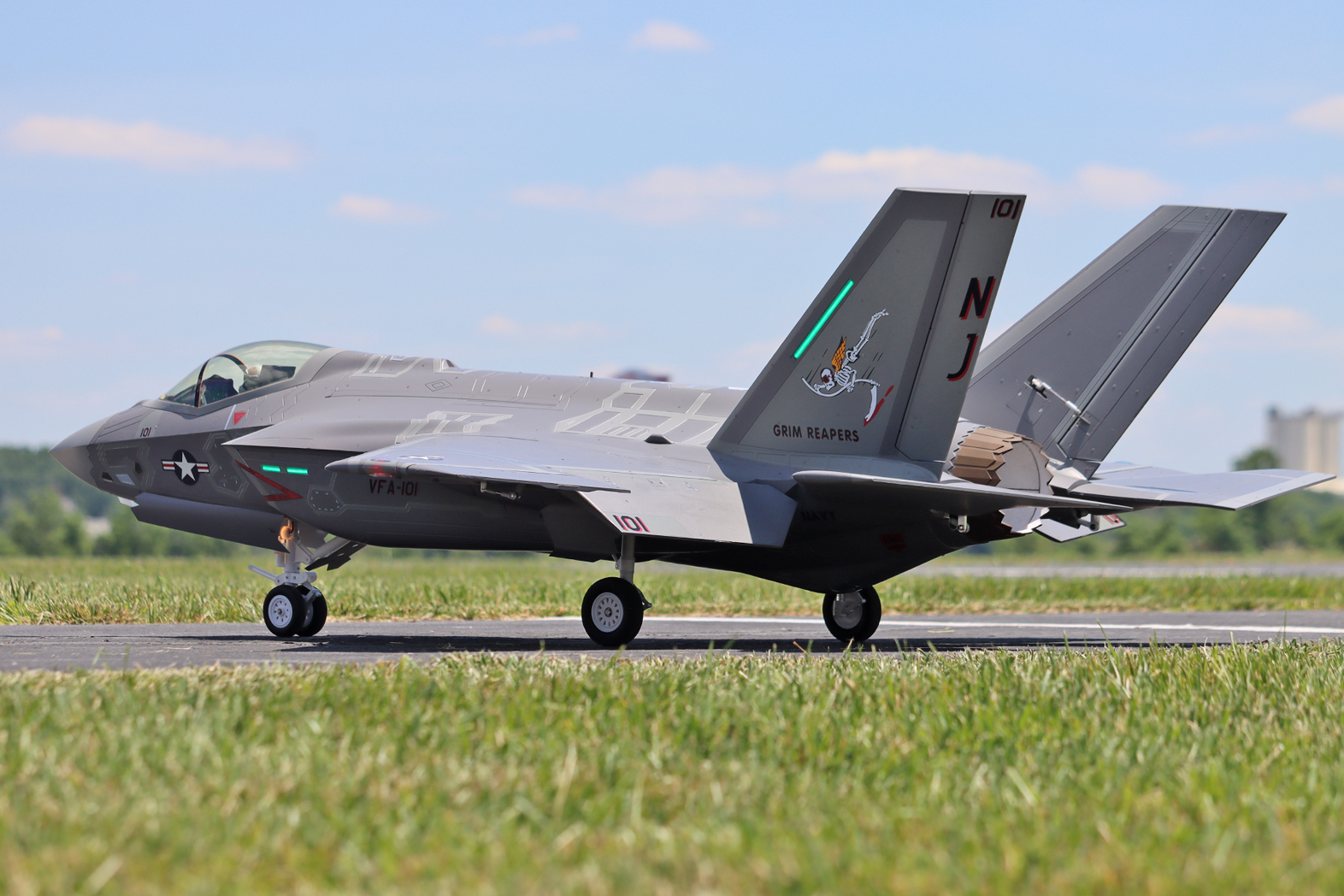

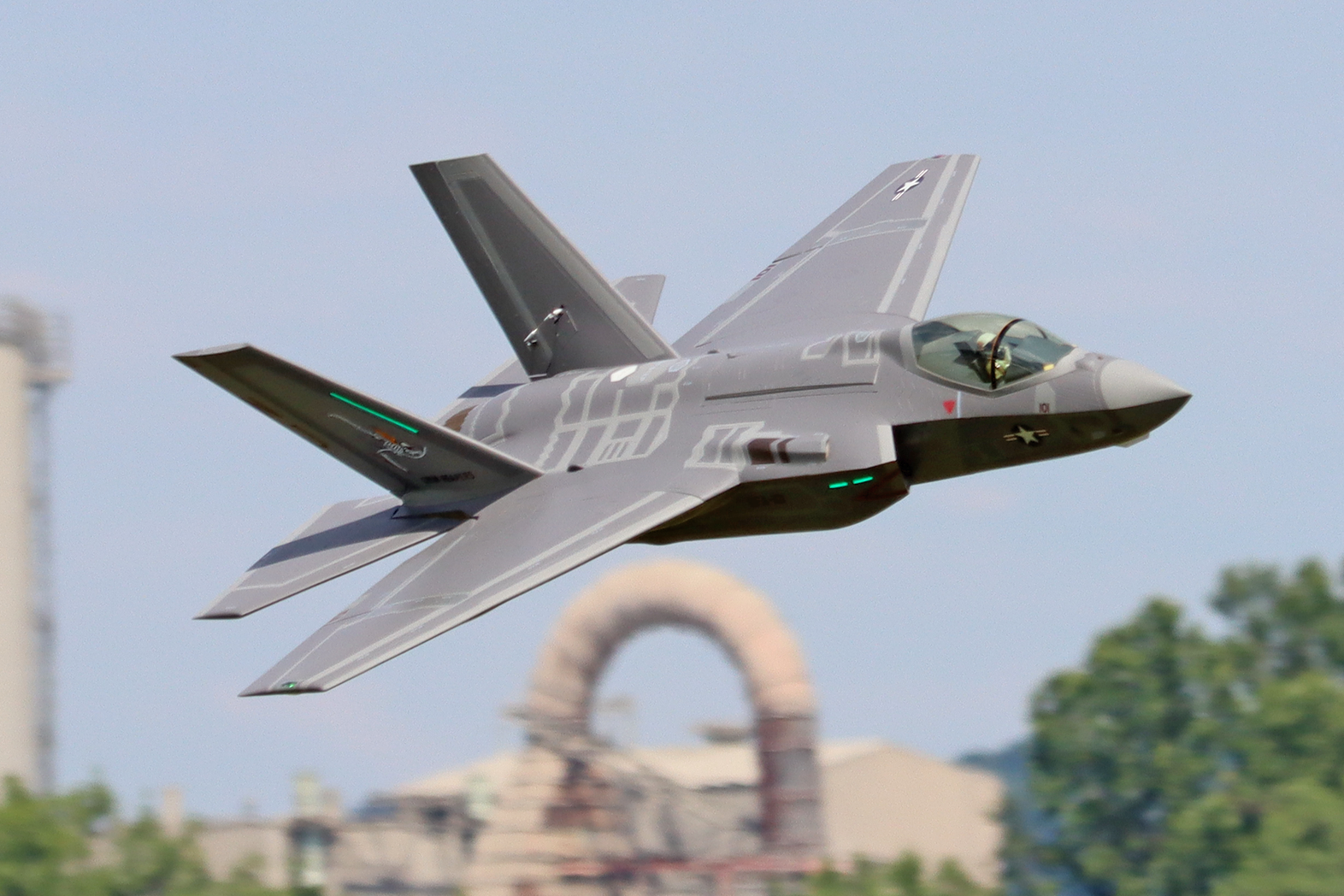

Freewing F-35C Lightning II 12S 110mm EDF Jet with Gyro - PNP

F-35C Lightning II Super Scale 110mm EDF Jet with Gyro – PNP

Feature Highlights

• Freewing's largest and most feature-rich model produced to date — 1340mm / 52.8in wingspan, 1/9.8 scale
• Powerful all-new 110mm 12-blade EDF with factory-installed 4678-680KV brushless inrunner and 130A HV ESC (10A UBEC)
• Sequenced landing gear doors open and close in true scale sequence
• CNC-machined shock-absorbing struts with scale painted gear legs
• Scale LED lighting package: navigation lights, formation lights and nose gear landing light
• Afterburner LED system illuminates the exhaust at full throttle
• Quick-release plug-in wings for fast, tool-free field assembly and compact transport
• Pre-installed and programmed Freewing EG01 6-axis gyro for a refined, confidence-inspiring flight experience
• Durable EPO foam construction with carbon fiber reinforcement throughout
• 14 factory-installed digital metal-gear servos
• Spacious battery bay accepts a wide range of 12S pack sizes
• Detailed cockpit with scale interior and hand-painted pilot figure


Specifications

• Wingspan: 1340mm / 52.8in
• Length: 1618mm / 63.7in
• Weight: 6700g–7000g / 236–247oz
• CG: 133–140mm from the leading edge where the removable wing panel meets the fuselage
• EDF: 110mm 12-blade (included)
• Motor: 4678-680KV inrunner (included)
• ESC: 130A high voltage with 10A UBEC (included)
• Servos: 14x digital metal gear (included)
• Landing gear: CNC-machined aluminum, shock-absorbing retracts (included)
• Required battery: 2x 6-cell 22.2V 5000–6000mAh LiPo for 12S operation (EC5)
• Required radio: 6–9 channel (7ch for reverse thrust, 8ch for gyro mode selection, 9ch for formation light on/off)
• Material: EPO foam with carbon fiber reinforcement
• Skill level: Intermediate · Age 14 and up · Build time 1+ hour
• Recommended environment: Outdoors, hard or maintained grass runways

In the Box

• F-35C Lightning II 110mm EDF Jet – PNP w/ Gyro (your choice of livery)
• Factory-installed 110mm EDF unit with 4678-680KV brushless inrunner motor
• Factory-installed 130A HV ESC with 10A UBEC
• Scale electric retractable landing gear with sequenced gear doors (installed)
• Factory-installed digital metal-gear servos and EG01 gyro system
• Scale LED navigation/formation lighting and afterburner LED system (installed)
• Detailed cockpit with pilot figure, carbon fiber wing spars, quick-release plug-in wings
• Instruction manual

Required to Complete

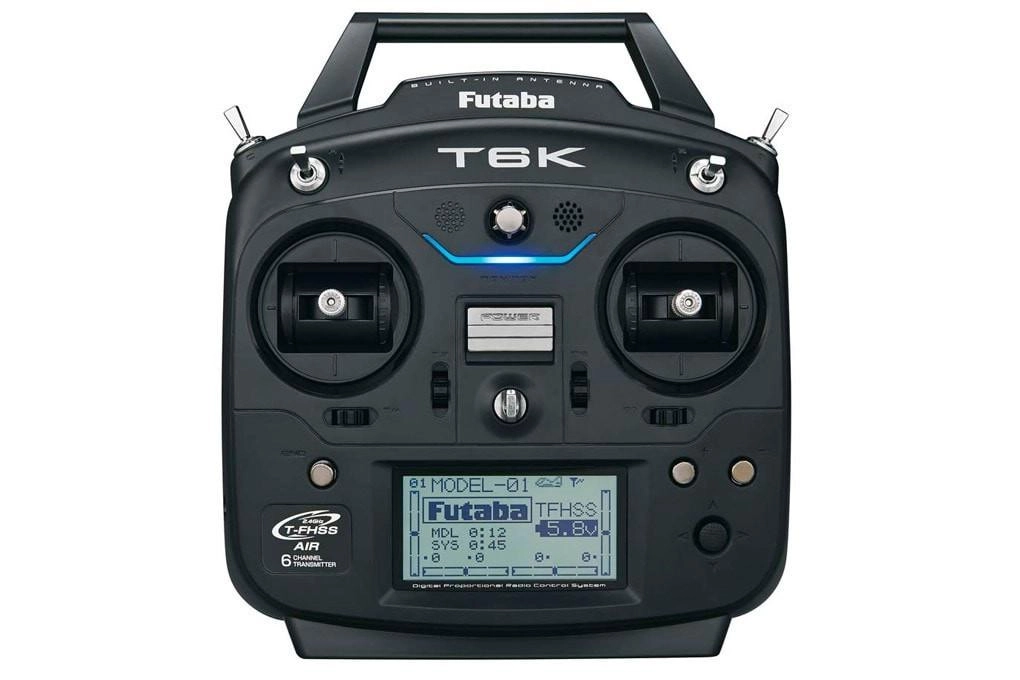

• 6–9 channel transmitter and receiver

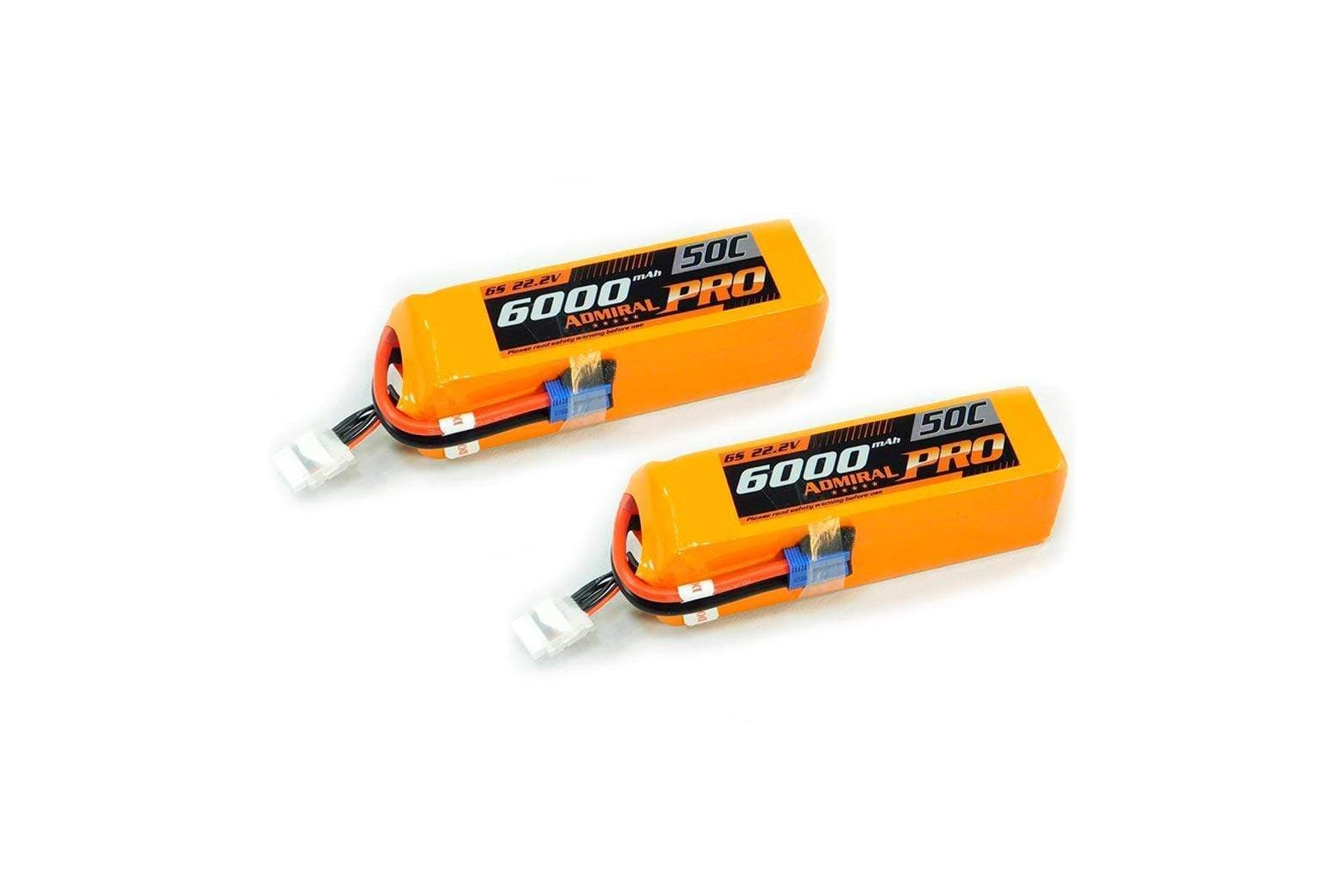

• 2x 6-cell 22.2V 5000–6000mAh LiPo batteries with EC5 connector

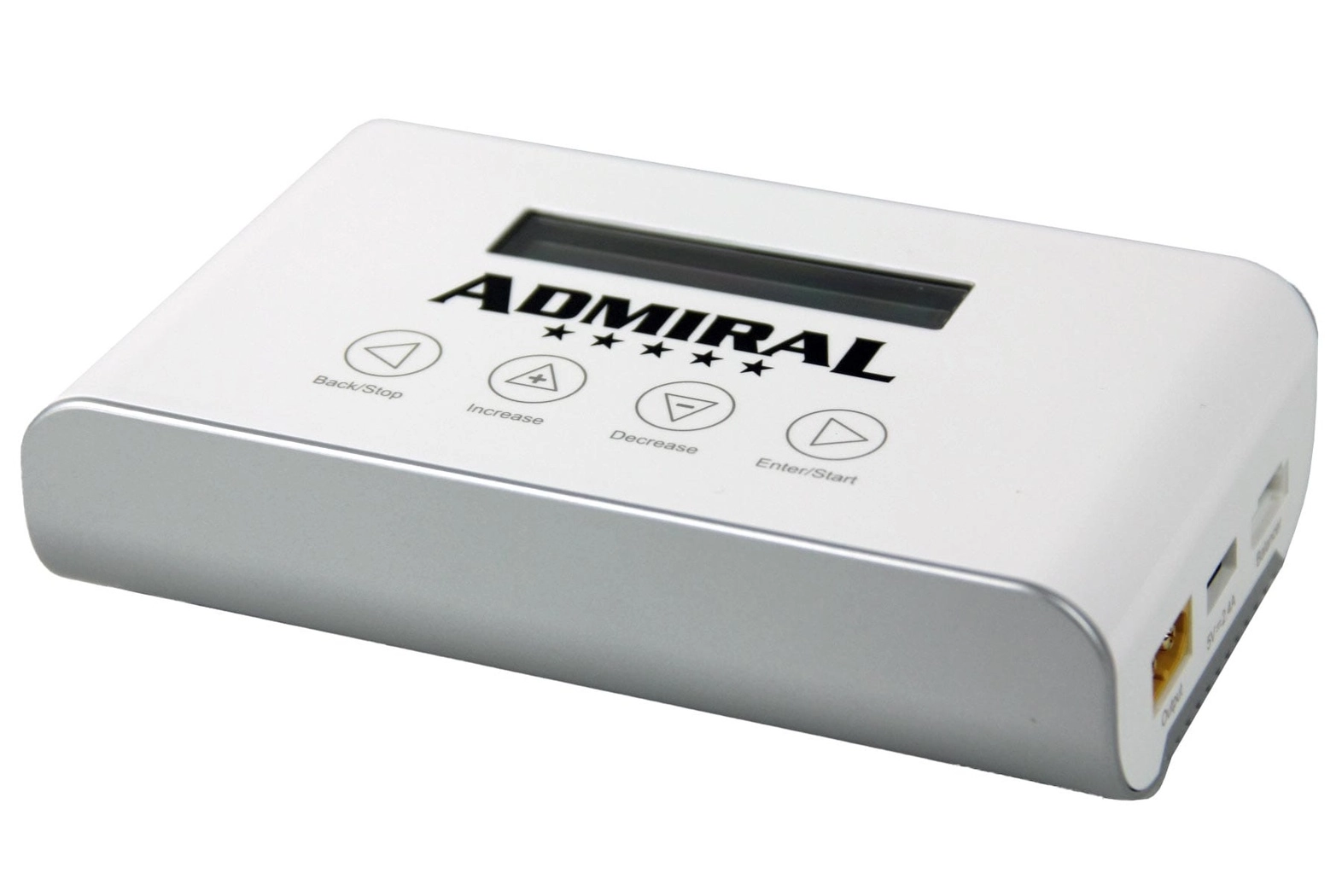

• 6-cell (6S) compatible battery charger

Power system note: always power the receiver and onboard electronics through the installed ESC using the main flight battery. Onboard electronics are rated for a maximum 5.5V BEC input — using any other power source will damage the electronics.
